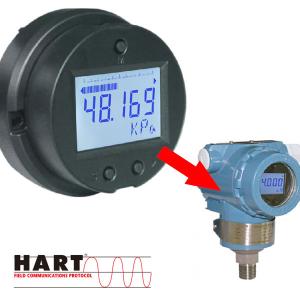

Integrated Circuit Board Pressure Transducer 4-20mA Hart Pressure Transmitter

Brand Name : SENSE

Model Number : SE62H

Certification : HART

Place of Origin : Shanghai China

MOQ : 10PCS

Payment Terms : T/T

Supply Ability : 10000PCS / Month

Delivery Time : 5-8 workdays

Packaging Details : Carton packing

Name : Integrated Circuit Board Pressure Transducer 4-20mA Hart Pressure Transmitter

Output : 4-20mA Hart

Type : Pressure Transmitter

Contact Now

Integrated Circuit Board Pressure Transducer 4-20mA Hart pressure Transmitter
Features
  1. Continuously rotatable display (330 O )
  2. Popular sensors acceptable
  3. Self -stability and filter setup
  4. Backup and restore data
  5. Excellent EMC performance
Application areas
The SE62H may be used for a wide
variety of measure sensors:
- pressure sensors
- differential sensors
- load cells
- magnetic field sensors
- strain gauge
- resistor of 2/3/4 wires
The SE62H with HART-protocol is suitable for various sensors and converts input signals into 4 to 20 mA analogue output signal.
Standard installation of the SE62H is for 3051 housing. Further versions are possible on request.
The SE62H can be programmed via three buttons. Following parameters can be adjusted: zero, span, decimal point, damping,
display mode, restore data and so on. For parameter setting and visualization of measured value an optional liquid crystal displays
is available. The display can continuously rotatable 330 O and with backlight.
The module is protected against miswiring and transient overvoltages.
  • Output signal:4...20 mA with superimposed communication signal for HART protocol
  • Ambient and operation:-40-85℃ (without display),-20-70℃ (with display)
  • Storage:-40-85℃
  • Electromagnetic compatibility(EMC):Interference immunity and interference emission according to GB/T17626.2-1998, compliance with IEC 61000-4-3:1995
  • Display type:5-digit, 52 bars meter
  • Display range:-19999-99999
Input
  • 2-wire sensor: Such as:2-wire resistor, magnetic float ball,magnetic rotating pole, etc.
  • 3-wire sensor:Such as:3-wire resistor, E+H Ceracore II,E+H Ceracore M, etc
  • 4-wire sensor: Such as:4-wire resistor, all bridge sensors, etc.
  • Electrical signal sensor:Such as: gauge pressure sensor etc.
  • Sensor supply: Constant volt age: 3.6V, constant curr ent: 0.1...1.0 mA
